In modern tertiary packaging lines—spanning high-volume beverage bottling plants, canning operations, ceramic tile manufacturing, brickyards, and pharmaceutical logistics—unitizing goods securely into tight, rigid multipacks requires high-performance thermal shrink films. SherkatTrade Industrial 3-Layer Co-Extruded PE Shrink Film Rolls are manufactured utilizing advanced multi-layer blown film extrusion technology, combining premium virgin Low-Density Polyethylene (LDPE 0075) with performance-enhancing metallocene linear resins (mLLDPE) to deliver peak bundling reliability.
When exposed to heat in radiant, convection, or gas-fired shrink tunnels, our films contract with precisely calibrated biaxial ratios—Machine Direction (MD: 60-75%) and Transverse Direction (TD: 15-25%). This creates a continuous, high-tension polymer skin around the payload that locks bottles, cans, and cartons into stable monolithic units, eliminating package deformation and corner "dog-ears" during transit and forklift handling.
| Technical Parameter | Standard Production Range | Test Standard | Operational & Line Efficiency Advantage |
|---|---|---|---|
| Film Polymer Architecture | Co-Ex 3-Layer (Virgin LDPE + mLLDPE Blend) | ASTM D1238 | Superior tensile tenacity, high optical clarity, and extreme tear resistance |
| Gauge / Thickness Range | 30 to 200 microns (120 to 800 gauge) | ISO 4593 | Highly uniform web gauge profile with cross-directional variance < ±2% |

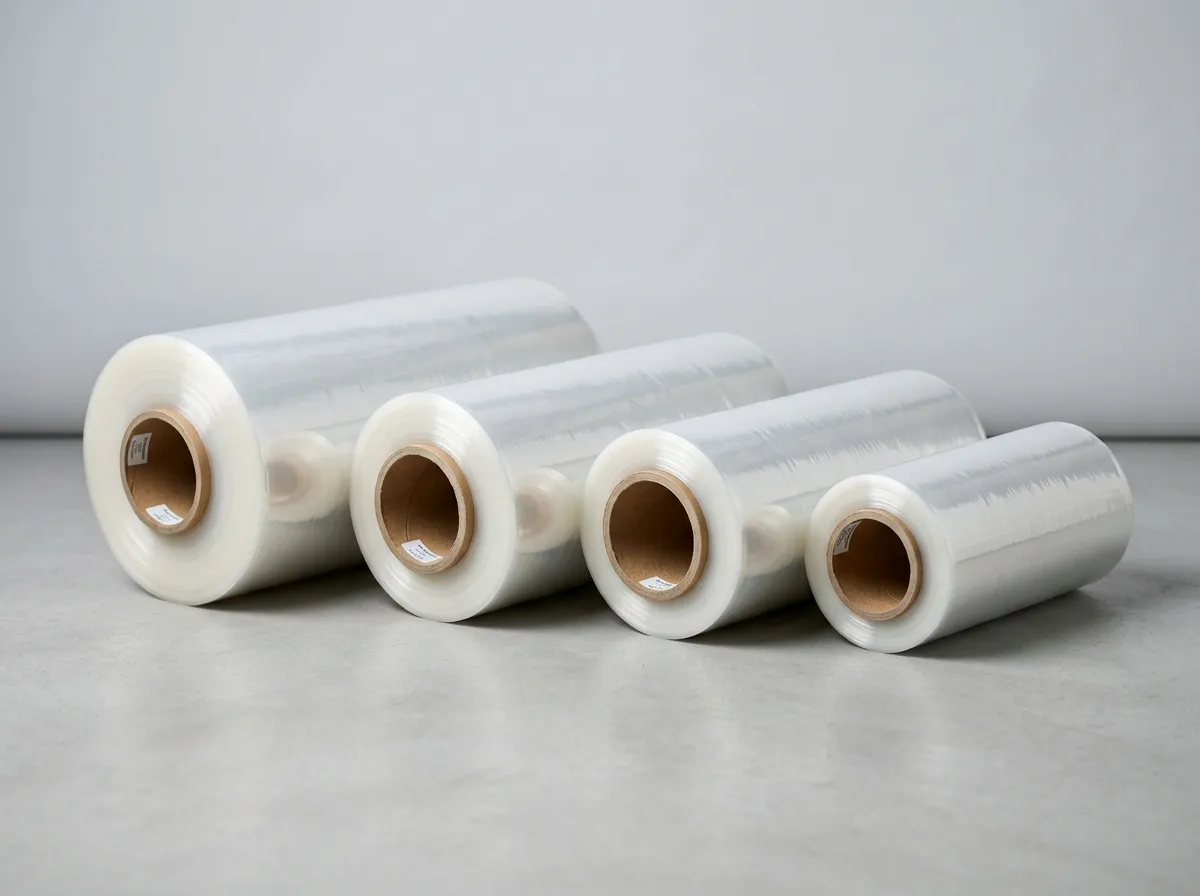

| Roll Width (Single & Center-Fold) | 20 cm to 300 cm (Single Wind) / Up to 600 cm (C-Fold) | Tolerance ±2 mm | 100% compatible with automatic high-speed and semi-automatic shrink machines |
| Machine Direction Shrink (MD) | 60% to 75% at 160°C tunnel setting | ASTM D2732 | Strong longitudinal clamping force securing heavy containers and bottles |
| Transverse Direction Shrink (TD) | 15% to 25% at 160°C tunnel setting | ASTM D2732 | Balanced cross-directional tension preventing package bulging and warping |
| Optimal Shrink Tunnel Temp | 140°C to 180°C | Factory Standard | Rapid shrink response at reduced oven temperatures, lowering electricity consumption |
| Tensile Strength at Break | MD ≥ 26 MPa / TD ≥ 24 MPa | ASTM D882 | Prevents film tearing over sharp cardboard carton edges and metal tray corners |
| Dart Drop Impact Resistance | > 450 grams at 70 microns thickness | ASTM D1709 | Outstanding puncture resistance against dynamic transit shocks and rough handling |
| Optical Clarity & Surface Gloss | Gloss > 85 GU / Haze < 8% | ASTM D1003 | Crystal-clear product presentation and effortless retail barcode scanning |
| Masterbatch Formulation | Anti-Static + Slip + UV Inhibitors (Optional) | Industrial Grade | Dust-repellent warehouse storage and 6 to 12 months outdoor UV weatherability |
| Industry & End-User Sector | Recommended Gauge & Width | Packaged Product | Strategic Commercial Advantage |
|---|---|---|---|

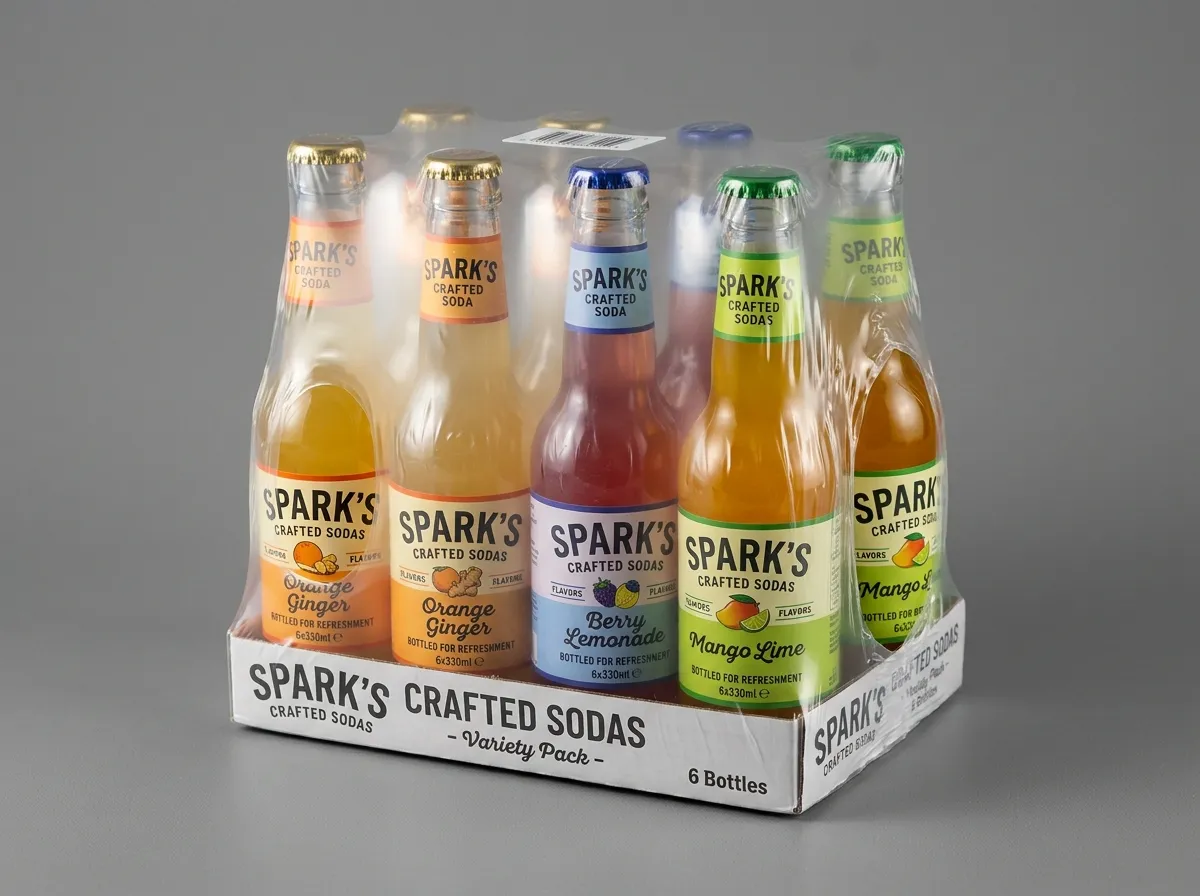

| Beverage & Bottling Plants | 45 - 70 µm (Width: 50 - 65 cm) | 6-pack & 12-pack PET bottles, cans | Tight bullseye openings, rigid pack holding, and zero pack slackening |
| Ceramic Tiles & Building Bricks | 80 - 130 µm (Width: 80 - 120 cm) | Cartoned tiles, paving stones, blocks | Weatherproof barrier protecting cartons from moisture and rain damage |
| Canned Foods & Dairy Products | 50 - 80 µm (Width: 40 - 70 cm) | Canned tomato paste, tuna, milk cartons | Hygienic isolation, dust prevention, and clean wholesale retail packaging |
| Pharmaceutical & Cosmetic Master Packs | 35 - 55 µm (Width: 30 - 60 cm) | Medicine cartons, personal care multipacks | Tamper-evident protection, barcode readability, and high optical gloss |
| Heavy-Duty Export Pallet Securing | 120 - 180 µm (Width: 100 - 150 cm) | Palletized bagged cement, resin pellets | Cost-effective monolithic pallet stabilization replacing stretch wrapping |
Thanks to the metallocene polymer matrix, SherkatTrade shrink films remain elastic during the oven heating phase. They draw tightly over sharp crate and tray corners without thinning out, puncturing, or tearing.
The film edges weld instantaneously in continuous automated sealing bars, forming unbreakable seam lines that maintain their structural integrity even when packs are picked up while hot.
A wide operating temperature window (140°C - 180°C) allows plant managers to accelerate conveyor line speeds by up to 20% while reducing thermal tunnel kilowatt consumption.
We offer custom flexographic printing using heat-resistant inks that do not distort, fade, or bleed when passed through high-temperature shrink ovens.
The required film width is calculated as: Pack Height + Pack Width + 10 cm free edge allowance. For light multi-packs, 45-60 microns is standard; for medium bottles and cans, 70-90 microns; and for pallet securing, 100-150 microns is recommended.
Yes. Our polymer blend is formulated to perform seamlessly across all industrial heating methods, including continuous electric conveyor tunnels, chamber machines, and manual gas heat guns.

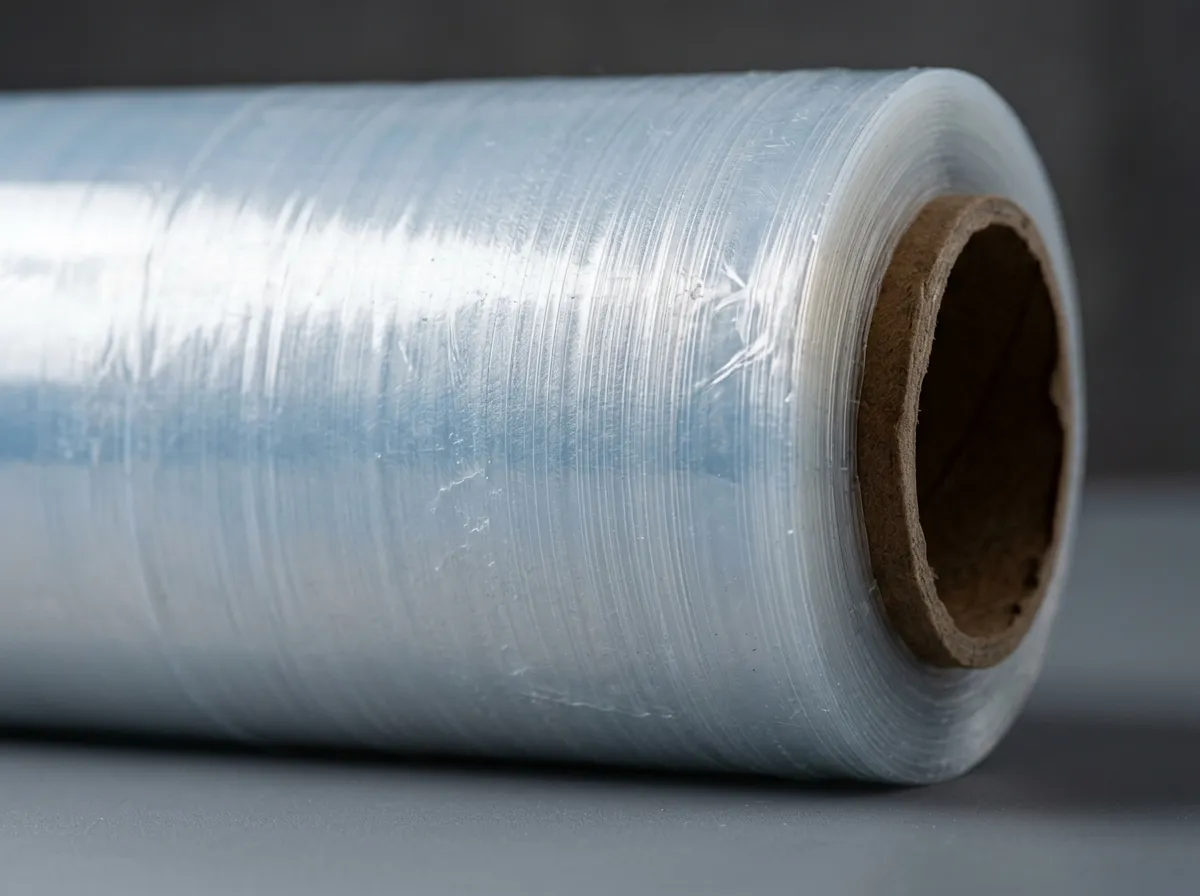

The standard MOQ is 500 kg for standard width rolls and 1 metric ton for custom dimensions or printed reels. Rolls are wound on heavy-duty 76 mm (3-inch) paper cores, wrapped in protective film, and dispatched directly from our Isfahan plant.
Yes. All our shrink film formulations contain calibrated food-grade anti-static additives to prevent electrostatic dust accumulation during warehouse storage.
💡 Packaging Engineering Advisory, Sample Test Reels & Wholesale Quotations
Contact our technical export division to order complimentary test reels, request custom gauge calibrations, and receive competitive export price quotations.
- 📱 Direct Call & WhatsApp: +98 913 113 2476
- 📧 Corporate Inquiries: [email protected]
- 🏢 Manufacturing Plant: SherkatTrade, No. 12, Shahzadeh Hassan St, Airport Hwy, Isfahan, Iran
| Dimensions | Width: 20 cm - 200 cm (Rolls), Thickness: 30 - 150 microns |
| Weight per Bag | Custom Roll Weight (15kg - 50kg per roll) |
| Material | ldpe_coextruded_3_layer |
| Color | transparent_crystal_clear_tinted |
| Printing Type | flexographic_up_to_6_colors |
| Load Capacity | High bundle containment force |
| Closure Type | thermal_shrink_tunnel_heat_gun |
| UV Treatment | Yes |
| Food Grade | Yes |
| Custom Size Available | Yes |
